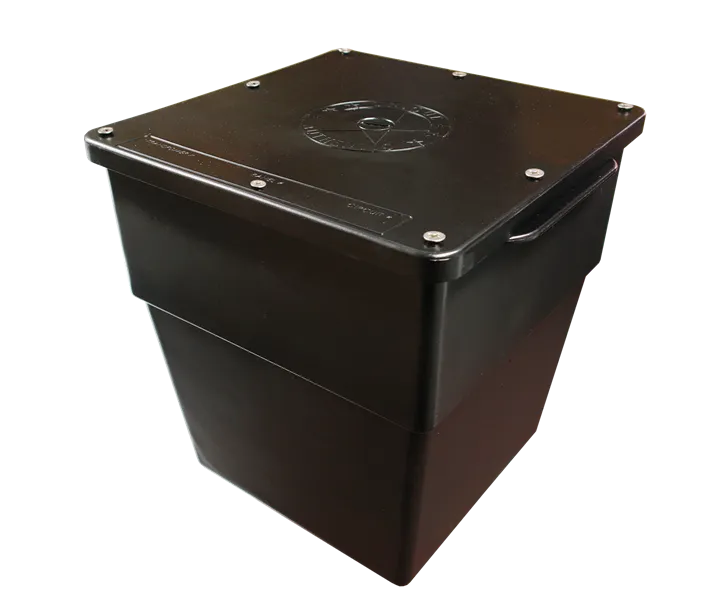

Unique Lighting Systems’ Direct Burial transformer is fully potted and sealed making it completely waterproof. Equipped with primary fuse protection and optional secondary in-line fusing the Direct Burial is ideal for commercial projects or residential applications where concealing the power source is necessary.
MODEL WATTAGE
310 = 12V-13V Output Leads
360 = 12V-15V Output Leads
500 = 12V-17V Output Leads
600 = 12V-17V Output Leads
840 = 12V-20V Output Leads
1120 = 12V-22V Output Leads
| Construction |
Durable UV resistant composite box. Suitable for direct burial. Agency approval as “SUITABLE FOR GROUND MOUNTED RECESSED.” |
| Core |
Engineered single core design with precision grain-oriented steel laminations. High temperature glass-impregnated nylon bobbin and solid copper mag wire. To ensure robust construction each output tap is welded to the mag wire for optimum connectivity. |
| Primary Protection |
Replaceable 3AG Time Delay (glass slow-blow fuse). |
| Output Terminal |
Each DB includes ready to wire color coded 10 gauge output wire lead. |
| Power Cord |
Unit must be hardwired. |
| Electrical Requirements |
Available power ratings 310, 360, 500, 600, 840 and 1120 Watts. Primary voltage is 120 volts, secondary voltage varies from 12V-22V output. See individual models for exact output leads. |
| Finish |
Black UV resistant composite box standard. |
| Warranty |
Limited Lifetime warranty against manufacturer’s defects. |
