Swivel Mirror Mounting Brackets

Size

• Overall:1-5/8" Height x 3/4" Width
• Thickness: 7/16"

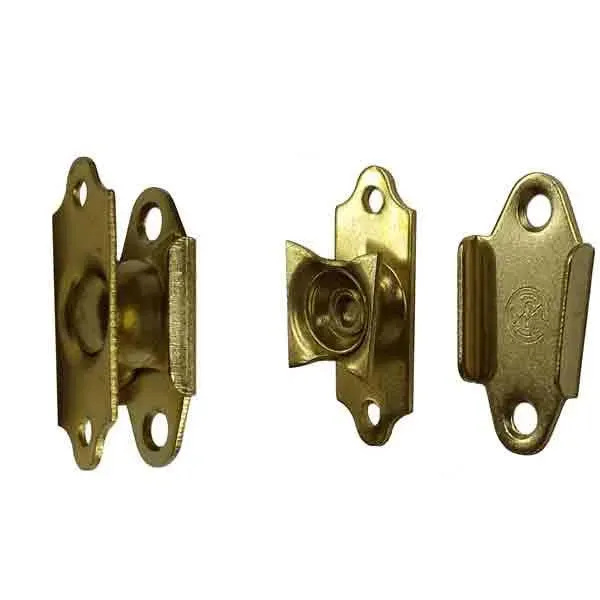

Steel Mirror Swivels are wedge shaped mirror mounting bracket movements. They mount between mirror and frame to provide support and maneuverability to wood mirrors, which hang from standards. Swivel provides tight, secure attachment and easy removal. Mirror is easily adjusted to desired positions. Use on vanity mirrors and cosmetic showcases.

Install Steel Mirror Swivels

• A tight joint, before installation, is required for mirror swivels to operate correctly once installed.
• Attach pivot-pieces to each side-edge of mirror frame
• Attach wedged sleeves, wide end up, to inside - side of each standard.
• Slide mirror down from top, so that each side pivot inserts into sleeve.
• Once installed: attached mirror provides leverage, making it easier to adjust hinge.

Steel Mirror Swivels are intentionally made tight, so that the joint will hold in position once installed. If initially they seem very tight simply attach a pair of pliers to each side and gently move leaves in opposite directions, back and forth a few times. This releases the joint.
